उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Cologne
प्रमाणन:
ISO9001 / IRIS
मॉडल संख्या:
केएल27
Contact Us

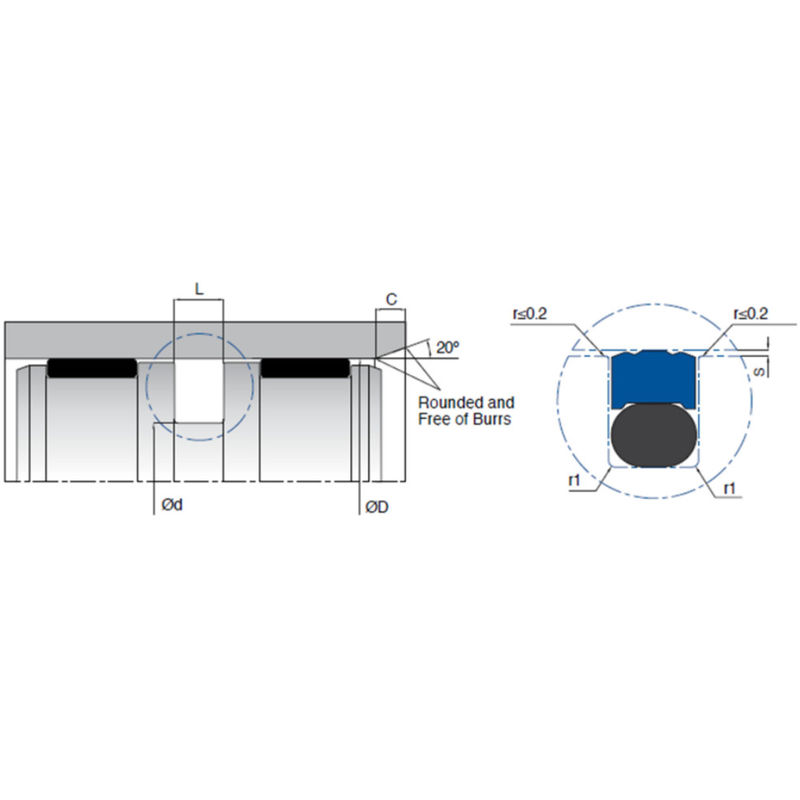

| D (H9) | d (h9) | L (+0.2/-0) | r1 | सी | ओ-रिंग | सामग्री | |
| KL27 015-007.5 | 15 | 7.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | पीयू |
| KL27 016-008.5 | 16 | 8.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | पीयू |
| KL27 020-012.5 | 20 | 12.5 | 3.2 | 0.6 | 3 | 11.91x2.62 | पीयू |
| KL27 022-0145 | 22 | 14.5 | 3.2 | 0.6 | 3 | 13.95x2.62 | पीयू |
| KL27 025-014 | 25 | 14 | 4.2 | 1 | 4.5 | 13.87x3x53 | पीयू |
| KL27 025-017.5 | 25 | 17.5 | 3.2 | 0.6 | 3 | 17.13x2.62 | पीयू |
| KL27 030-022.5 | 30 | 22.5 | 3.2 | 0.6 | 3 | 21.89x2.62 | पीयू |
| KL27 032-021 | 32 | 21 | 4.2 | 1 | 4.5 | 20.22x3x53 | पीयू |
| KL27 032-024.5 | 32 | 24.5 | 3.2 | 0.6 | 3 | 23.81x2.62 | पीयू |
| KL27 035-027.5 | 35 | 27.5 | 3.2 | 0.6 | 3 | 26.64x2.62 | पीयू |
| KL27 038-030.5 | 38 | 30.5 | 3.2 | 0.6 | 3 | 29.82x2.62 | पीयू |
| KL27 040-024.5 | 40 | 24.5 | 6.3 | 1.3 | 6 | 23.17x5.33 | पीयू |
| KL27 040-029 | 40 | 29 | 4.2 | 1 | 4.5 | 28.17x3.53 | पीयू |
| KL27 040-032.5 | 40 | 32.5 | 3.2 | 0.6 | 3 | 31.42x2.62 | पीयू |
| KL27 045-029.5 | 45 | 29.5 | 6.3 | 1.3 | 6 | 29.51x5.33 | पीयू |
| KL27 045-034 | 45 | 34 | 4.2 | 1 | 4.5 | 32.92x3.53 | पीयू |
| KL27 048-037 | 48 | 37 | 4.2 | 1 | 4.5 | 36.1x3.53 | पीयू |
| KL27 049-038 | 49 | 38 | 4.2 | 1 | 4.5 | 37.69x3.53 | पीयू |
| KL27 050-034.5 | 50 | 34.5 | 6.3 | 1.3 | 6 | 32.69x5.33 | पीयू |
| KL27 050-039 | 50 | 39 | 4.2 | 1 | 4.5 | 37.69x3.53 | पीयू |
| KL27 052-036.5 | 52 | 36.5 | 6.3 | 1.3 | 6 | 34.29x5.33 | पीयू |
| KL27 054-043 | 54 | 43 | 4.2 | 1 | 4.5 | 42.86x3.53 | पीयू |
| KL27 055-039.5 | 55 | 39.5 | 6.3 | 1.3 | 6 | 37.47x5.33 | पीयू |
| KL27 055-044 | 55 | 44 | 4.2 | 1 | 4.5 | 42.86x3.53 | पीयू |
| KL27 057.15-046.15 | 57.15 | 46.15 | 4.2 | 1 | 4.5 | 46.04x3.53 | पीयू |
| KL27 060-044.5 | 60 | 44.5 | 6.3 | 1.3 | 6 | 43.82x5.33 | पीयू |
| KL27 060-049 | 60 | 49 | 4.2 | 1 | 4.5 | 47.63x3.53 | पीयू |
| KL27 063-047.5 | 63 | 47.5 | 6.3 | 1.3 | 6 | 47x5.33 | पीयू |
| KL27 063-052 | 63 | 52 | 4.2 | 1 | 4.5 | 50.8x3.53 | पीयू |
| KL27 063.5-052.5 | 63.5 | 52.5 | 4.2 | 1 | 4.5 | 50.8x3.53 | पीयू |
| KL27 065-049.5 | 65 | 49.5 | 6.3 | 1.3 | 6 | 47x5.33 | पीयू |
| KL27 065-054 | 65 | 54 | 4.2 | 1 | 4.5 | 52.39x3.53 | पीयू |
| KL27 070-054.5 | 70 | 54.5 | 6.3 | 1.3 | 6 | 53.34x5.33 | पीयू |
| KL27 070-059 | 70 | 59 | 4.2 | 1 | 4.5 | 57.15x3.53 | पीयू |
| KL27 075-059.5 | 75 | 59.5 | 6.3 | 1.3 | 6 | 56.52x5.33 | पीयू |
| KL27 075-064 | 75 | 64 | 4.2 | 1 | 4.5 | 63.09x3.53 | पीयू |
| KL27 080-059 | 80 | 59 | 8.1 | 1.8 | 8 | 58x6.99 | पीयू |
| KL27 080-064.5 | 80 | 64.5 | 6.3 | 1.3 | 6 | 62.87x5.33 | पीयू |
| KL27 080-069 | 80 | 69 | 4.2 | 1 | 4.5 | 68.26x3.53 | पीयू |
| KL27 085-069.5 | 85 | 69.5 | 6.3 | 1.3 | 6 | 69.22x5.33 | पीयू |
| KL27 090-074.5 | 90 | 74.5 | 6.3 | 1.3 | 6 | 72.4x5.33 | पीयू |
| KL27 095-079.5 | 95 | 79.5 | 6.3 | 1.3 | 6 | 78.74x5.33 | पीयू |
| KL27 100-084.5 | 100 | 84.5 | 6.3 | 1.3 | 6 | 81.92x5.33 | पीयू |
| KL27 100-089 | 100 | 89 | 4.2 | 1 | 4.5 | 85.32x3.53 | पीयू |
| KL27 105-089.5 | 105 | 89.5 | 6.3 | 1.3 | 6 | 88.27x5.33 | पीयू |
| KL27 110-094.5 | 110 | 94.5 | 6.3 | 1.3 | 6 | 91.44x5.33 | पीयू |
| KL27 115-094 | 115 | 94 | 8.1 | 1.8 | 8 | 92x6.99 | पीयू |
| KL27 115-099.5 | 115 | 99.5 | 6.3 | 1.3 | 6 | 97.80x5.33 | पीयू |
| KL27 120-104.5 | 120 | 104.5 | 6.3 | 1.3 | 6 | 104.14x5.33 | पीयू |
| KL27 125-104 | 125 | 104 | 8.1 | 1.8 | 8 | 102x6.99 | पीयू |
| KL27 125-109.5 | 125 | 109.5 | 6.3 | 1.3 | 6 | 107.32x5.33 | पीयू |
| KL27 130-114.5 | 130 | 114.5 | 6.3 | 1.3 | 6 | 110.49x5.33 | पीयू |
| KL27 135-114 | 135 | 114 | 8.1 | 1.8 | 8 | 113.67x6.99 | पीयू |
| KL27 140-119 | 140 | 119 | 8.1 | 1.8 | 8 | 116.84x699 | पीयू |
| KL27 150-129 | 150 | 129 | 8.1 | 1.8 | 8 | 126.37x6.99 | पीयू |
| KL27 160-139 | 160 | 139 | 8.1 | 1.8 | 8 | 135.9x699 | पीयू |
| KL27 170-149 | 170 | 149 | 8.1 | 1.8 | 8 | 145.42x6.99 | पीयू |
| KL27 180-159 | 180 | 159 | 8.1 | 1.8 | 8 | 155.6x6.99 | पीयू |
| KL27 200-179 | 200 | 179 | 8.1 | 1.8 | 8 | 177.17x6.99 | पीयू |
| KL27 250-229 | 250 | 229 | 8.1 | 1.8 | 8 | 227.97x699 | पीयू |
